Made in Korea
Monday, February 4, 2013
Wednesday, November 7, 2012
Pro Gold VI Easy QR
The Pro Gold ballhead series offers the photographer and an almost limitless range of applications, faster to use and inherently more stable than existing tripod heads.
Pro Gold VI Easy QR
- Camera Connection : One touch flip-lock -quick lever quick release clamp
- Load capacity : 70 Kg / 154 lb
- Weight : 690g / 1.52lb including clamp
- Height : 109mm / 4.29 inches
- Housing Diameter : Φ 66mm / 2.59 inches
- Ball Diameter : Φ 54mm / 2.12 inches
- Base Diiameter : Φ 70 mm / 2.75 inches
- Friction control : Yes, Bi-Axial Progressive
- Pan : 360°
- Tilt : +/-90°
- Mount Thread size : 3/8” - 16 UNC
- Spirit Level : Yes, 3different levels
- Finish : Black, Red, Gold, Blue
Pro Gold V Easy QR
Pro Gold V Easy QR
- Camera Connection : One touch flip-lock -quick lever quick release clamp
- Load capacity : 70 Kg / 154 lb
- Weight : 620g / 1.37 lb including
- Height : 108 mm / 4.25 inches
- Housing Diameter : Φ 62 mm / 2.44 inches
- Ball Diameter : Φ 50 mm / 1.96 inches
- Base Diiameter : Φ 68 mm / 2.67 inches
- Friction control : Yes, Bi-Axial Progressive
- Pan : 360°
- Tilt : +/-90°
- Mount Thread size : 3/8” - 16 UNC
- Spirit Level : Yes, 3different levels
- Finish : Black, Red , two tone
Pro Gold IV Easy QR
Pro Gold IV Easy QR
- Camera Connection : One touch flip-lock -quick lever quick release clamp
- Load capacity : 50 Kg / 110 lb
- Weight : 550g / 1.21 lb including clamp
- Height : 104 mm / 4.09 inches
- Housing Diameter : Φ 58 mm / 2.28 inches
- Ball Diameter : Φ 46 mm / 1.81 inches
- Base Diiameter : Φ 64 mm / 2.51 inches
- Friction control : Yes, Bi-Axial Progressive
- Pan : 360°
- Tilt : +/-90°
- Mount Thread size : 3/8” - 16 UNC
- Spirit Level : Yes, 3different levels
- Finish : Black, Red, Gold, Blue
Pro Gold III Easy QR
The Pro Gold ballhead series offers the photographer and an almost limitless range of applications, faster to use and inherently more stable than existing tripod heads.
Pro Gold III Easy QR
- Camera Connection : One touch flip-lock -quick lever quick release clamp
- Load capacity : 40 Kg / 88 lb
- Weight : 480g / 1.05 lb including clamp
- Height : 99 mm / 3.89 inches
- Housing Diameter : Φ 54mm / 2.12 inches
- Ball Diameter : Φ 42mm / 1.65 inches
- Base Diiameter : Φ 60mm / 2.36 inches
- Friction control : Yes, Bi-Axial Progressive
- Pan : 360°
- Tilt : +/-90°
- Mount Thread size : 3/8” - 16 UNC
- Spirit Level : Yes, 3different levels
- Finish : Black, Red, Gold, Blue ,two tone
Pro Gold I Easy QR
Pro Gold I Easy QR
- Camera Connection : One touch flip-lock -quick lever quick release clamp
- Load capacity : 30 Kg / 66lb
- Weight : 354g / 0.78lb including clamp
- Height : 92 mm / 3.62 inches
- Housing Diameter : Φ 46 mm / 1.81 inches
- Ball Diameter : Φ 34 mm / 1.33inches
- Base Diiameter : Φ 51 mm / 2.0inches
- Friction control : Yes, Bi-Axial Progressive
- Pan : 360°
- Tilt : +/-90°
- Mount Thread size : 3/8” - 16 UNC
- Spirit Level : Yes, 3different levels
- Finish : Black, Red, Gold, Blue
Packing Size : 11.8*9.4*16.6㎝ (608.4g)
Saturday, September 8, 2012
Thursday, September 6, 2012
Canon 5d Mark III Body L plate [PC-5dMarkIII-UP2]
Custom made one-piece bracket machined from light weight 6061T6 Aluminum
Allows use of camera strap.
Allows full access to all switches and battery drawers
Photo Clam quick release L plates are the perfect combination for your light weight tripod head, or any photography application where weight, and a perfect fit are priority.
Our camera plates are very lightweight, precision machined, and are well suited to nature photographers, landscape photography, large & medium format, and digital and 35mm SLR cameras, outdoor photography where weight is an issue.
Our quick release camera plates are compatible with clamps from Arca-Swiss, Kirk, Wimberly, Really Right Stuff, Foba, and any other tripod heads that accept the Arca-Swiss mount.
Monday, September 3, 2012
Monday, May 28, 2012

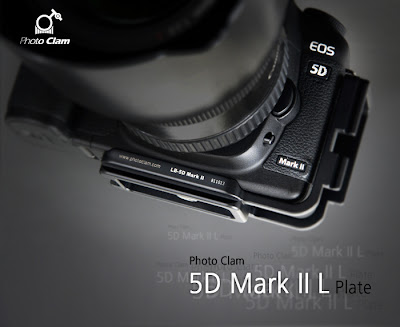

L plate for Canon 5dMark II Body (PCLB-5dMarkII-UP2)
Custom made one-piece bracket machined from light weight 6061T6 Aluminum
Allows use of camera strap.
Allows full access to all switches and battery drawers
Photo Clam quick release L plates are the perfect combination for your light weight tripod head, or any photography application where weight, and a perfect fit are priority.
Our camera plates are very lightweight, precision machined, and are well suited to nature photographers, landscape photography, large & medium format, and digital and 35mm SLR cameras, outdoor photography where weight is an issue.
Our quick release camera plates are compatible with clamps from Arca-Swiss, Kirk, Wimberly, Really Right Stuff, Foba, and any other tripod heads that accept the Arca-Swiss mount.
Sunday, December 25, 2011
Photo Clam at Photo Plus PDN 2011 in NYC,USA
Photo Clam at Photo Plus PDN 2011 in NYC,USA
Ballheads, carbon tripods, geared head, gimbal orion tilt head, L-bracket, camera plates, lens plates
Photo Clam at P & E China 2011 in Beijing
Photo Clam at P & E China 2011 in Beijing
Photo Clam Carbon tripod, tripod ballhead and Camera plates
Photo Clam Carbon tripod, tripod ballhead and Camera plates
Thursday, December 8, 2011
Photo Clam arca type universal L-bracket LB-5dMark II for Canon 5d Mark II Body
112 x 77 x 45mm
Weight 77g
Our customized L-plate(LB-5dMarkII) is Arca-style quick-release compatible.
They are optimized for precision, lightweight, and comfort.
Friday, March 4, 2011
Wednesday, November 10, 2010
Saturday, June 19, 2010
Thursday, May 6, 2010
Thursday, March 25, 2010
Photo Clam PC-36NS(Black)
Providing gentle and balanced motion, Photo Clam ball heads are ideal for a variety of photographic applications. Our ballheads provide stability, facilitate panoramic photos, and allow you to capture images at what previously would have been difficult angles.
Model : PC-36N/PC-36NS(Black)
Ball Diameter : 36mm/1.42in
Housing Diameter : 46mm/1.81in
Panning Base Diameter : 53.5mm/2.11in
Height : 89mm/3.50in
Load Capacity : 30kg/66lbs
Weight : 350g/12.3oz/0.8lb
Friction Preset : Yes
Levels : Yes
Model : PC-36N/PC-36NS(Black)
Ball Diameter : 36mm/1.42in
Housing Diameter : 46mm/1.81in
Panning Base Diameter : 53.5mm/2.11in
Height : 89mm/3.50in
Load Capacity : 30kg/66lbs
Weight : 350g/12.3oz/0.8lb
Friction Preset : Yes
Levels : Yes
Photo Clam PC-74NS ballhead
Model : PC-74NS
Ball Diameter : 74mm/2.91in
Housing Diameter : 88mm/3.46in
Panning Base Diameter : 96mm/3.78in
Height : 141mm/5.55in
Load Capacity : 100kg/220lbs
Weight : 1420g/50.1oz/3.1lb
Friction Preset : Yes
Levels : Yes
Ball Diameter : 74mm/2.91in
Housing Diameter : 88mm/3.46in
Panning Base Diameter : 96mm/3.78in
Height : 141mm/5.55in
Load Capacity : 100kg/220lbs
Weight : 1420g/50.1oz/3.1lb
Friction Preset : Yes
Levels : Yes
Saturday, August 1, 2009

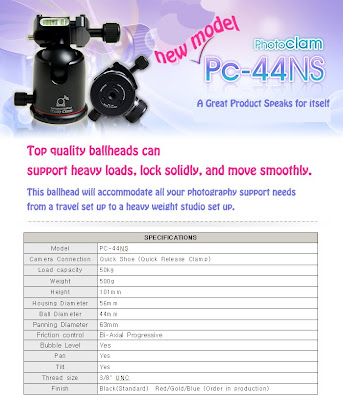

New ballhead PhotoClam PC-44NS
Features
+ Easy to handle plate clamp - The knob is located on the side of the quick Shoe, Which allows for fast and easy handling of the plate clamp.
+ Powerful Main Ball - The load capacity of the ball is key to the ballhead's ability to securely hold at any angle with no slipping or distortion.
+ Ultimate Multi-Functional Grip - The main handle has a dial labelled on a scale from 1 to 12, allowing for free movement of the ball head. By turning the dial knob clockwise, friction increases, locking the ball head into position.
+ Secret function / Control Screw - By simply turning the screw with the tip of your thumb, minimum friction force is set, allowing the multi-functional grip to be loosened to the set position. + One Touch Safety Button - The one-touch slip stopper at the bottom of the Quick Shoe secures the equipment and guards against accidental detachment and equipment mishaps.
+ Tripod Connecting Socket - Located under the ball head, the 3/8" socket is the industry standard, and compatible with many tripods.
Photo Clam ball heads make a difference
Designed to handle extreme indoor and outdoor weather conditions
Deliver perfect alignment with two built-in spirit levels
Compatible with many different camera brands and sizes
Allows for optimal adjustment, secure and precise position with friction screw adjustments
Offers exact degrees of precision for 360 horizontal pans with the panoramic base and locking knob
Compatability
Photo Clam Ball heads have an industry standard 3/8" female thread on the base, for mounting to almost all tripods, including the most well known brands such as Manfrotto, Gitzo, Velbon, Slik and more.
For mounting your camera or lens to the ball head, you will need a double dovetail (also known as Arca-Swiss) type of quick release plate.
There are two options for plates:
The first, is to buy a standard size plate which will fit practically any camera or lens system with ease and stability.
For those wanting the utmost in security, stability and aesthetic integration, the best option is one of the Photo Clam camera-specific enginereed quick release plates. These plates are custom fitted to the body of the particular model of camera you own, thus ensuring the most secure connection between tripod head and camera.
Sunday, May 3, 2009
Friday, March 13, 2009
Orion Tilt Head
Orion Tilt Head
Specialized tilt head can be used for wildlife photography,nature photography or sporting events with telephoto lenses.
Its gimbal-type design allows you to rotate your lens around its center of gravity and thus easily manipulate very large lenses. It can capture the subtle rhythms of subjects with lenses whose size and weight are anything but subtle.
It is lighter and it has more functionality than similar competitive products.
-Tripod Head for Telephoto Lenses
-Gimbal-type Design
-Weight - 3.15 lb (1.4 kg)
-For a lens with an Arca-Swiss lens plate
-Quick-Release Type - Arca-Swiss (Built-in)
-Works with Dedicated Flash Bracket - F-9
Lens Compatibility:
Orion tilt Head will adjust to fit virtually any telephoto lens with a rotation collar
Ideally suited for large lenses (300mm f/2.8 or bigger)
The following lenses require special consideration:
Nikon 600mm f/4 AF-S version I: Requires the AP-652 Replacement Foot
Nikon 600mm f/4 AF-S version II: Requires the AP-452 Replacement Foot
Nikon 400mm f/2.8 AF-S version I: Requires the AP-452 Replacement Foot
Nikon 400mm f/2.8 AF-S version II: Requires the AP-452 Replacement Foot
Quick-Release Specification:
Orion tile Head has a built-in, Arca-Swiss style quick-release clamp
It is not available in a non-quick-release model
In order to use the head, your lens must be equipped with an Arca-Swiss style lens plate
Flash Bracket Compatibility:
It attaches directly to the Arca-Swiss Style dovetail on the arm of the Orion tilt head.
Pictures taken using orion tilt head
Tuesday, March 3, 2009
Arca-Swiss style universal Camera Plates
MOUNTING PLATES
Quick release mounting plate compatible with the Telephoto and/or
PC-102-UP - Compatible with all camera and lens-system sizes 70-200mm,200mm or 300mm
PC-170-UP - Compatible with all camera and lens-system sizes 400mm,500mm or 600mm
Our easy to use, quick release mounting plates allow for fast camera exchanges and increase the ball head's versatility. Our plates securely lock your camera and prevent any imbalances to accommodate all your photographic needs.
PC-52-UP2
Universally compatible quick release mounting plate, equipped with a hand strap.
Plate has two strap holes on the both sides for models without strap links.
The narrow plate does not cover the battery, which makes it convenient to
use with cameras whose batteries need to be changed from the bottom. Also,
while other existing plates have Dovetail openings only on the left and right,
the PC-52-UP2 Plate has a rail not only on the left and right but also one the
top and bottom, making it compatible with any kind of tripod head. The
Long Lens
PC-69-UP2
Plate has two strap holes on both sides for models without strap
links. PC-69-UP2 Plate has a rail on the left and right, making it
compatible with any kind of tripod head. The plate enables tripod
collars to mount to the ball head, moving the center of gravity
toward lens thus preventing instability by applying pressure in one
direction, and impeding then
incredible light thickness reduces the inconvenience of vertical
shots.
Quick release mounting plate compatible with the Telephoto and/or
mount from bending.
PC-102-UP - Compatible with all camera and lens-system sizes 70-200mm,200mm or 300mm
PC-170-UP - Compatible with all camera and lens-system sizes 400mm,500mm or 600mm
PC-D3-UP - Nikon D3
PC-D300-UP2 - Nikon D300 Body
PC-D300-UP - Nikon D300 Grip
PC-D70-UP2 - Nikon D70 Body
PC-68-UP2 - Nikon D80 and D90 Body
PC-79-UP2 - Nikon D200/S5Pro Body
PC-69-UP - Nikon D80/D200/Fuji S5Pro Grip
PC-68-UP - Canon 1D/1Ds or Canon 1Ds Mark II
The plate is optimally designed and precision machined for the 1D series, assuring the best vibration dampening and enhanced rigidity. To minimize the weight, all excess material is removed using precision carving, making Photo Clam's plates smaller and lighter than those from other manufacturers.
PC-M3-UP - Canon 1D Mark III or Canon 1Ds Mark III
PC-76-UP - Canon 5D Grip
PC-75-UP2 - Canon 5D Body
PC-59-UP - Canon 350/400D Grip
PC-59-UP2 - Canon 350D/400D Body
PC-75-UP - Canon 10D/20D/30D Grip
PC-78-UP2 - Canon 10D/20D/30D Body
